TL;DR

Enable custom commands and replace the normal CBR bitrate setting, which is like:

-b:v 6000k

With:

-rc constqp -cq 24
  • -rc constqp enables CQP
  • -cq 24 sets the quantization to 24

The story

I'm a big fan of high quality recordings, and I'm an even bigger fan of small file sizes, which is exactly why I love CQP.

CQP or "Constant Quantization Parameter" is a Variable Bitrate setting which basically reduces or increases the bitrate to maintain a similar video quality for each second of the video. Higher quantization means less overall quality for the video.

In my OBS settings, for recordings, I always enable CQP with Nvidia or CRF with x264 because it makes desktop screen recordings super high quality but with really small filesizes, small enough to shove the video straight into a discord server, where the maximum file size for non paying "citizens" is like 10 MBs. (Well it used to be 8 MBs then they updated it to 25 MBs and then down to 10 MBs but that's not the point of this post)

I am also a big fan of ShareX and while using the video recording option in it, as usual, I realised that I should probably enable CQP in it too, but it doesn't come with any kind of CQP options if you're using the H264 Nvidia option.

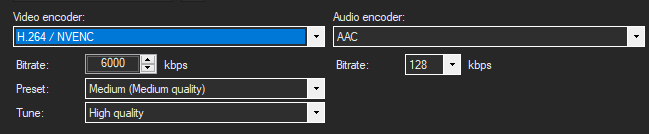

ShareX settings. Video encoder is set to "H.264 / NVENC". Only option for video recording is constant bitrate, which is set to 6000

After seeing that it does not have a CQP option, I started googling for how to enable CQP in ffmpeg, which is where I realised that it is very much not documented.

So I jumped straight into the word meatgrinder (with my meatgrinder of choice being LLama 3.1 70B of the duckduckgo variety), put in the arguments used by ShareX, and asked it to modify the arguments so it will use CQP instead of CBR. It told me that I should remove -b:v 6000k and replace it with -rc constqp -cqp 18, which ended up not working, because -cqp isn't a real argument. It is actually -cq.

After enabling custom commands, I replaced the bitrate setting with the before mentioned arguments and it worked. The ffmpeg params which I ended up having are:

-f dshow -thread_queue_size 1024 -rtbufsize 256M -audio_buffer_size 80 -framerate $fps$ -i video="screen-capture-recorder":audio="virtual-audio-capturer" -c:v h264_nvenc -r $fps$ -preset p4 -tune hq -rc constqp -cq 24 -movflags +faststart -c:a aac -ac 2 -b:a 128k -y "$output$"

Only difference is that I changed the constant quality parameter to be 24 instead of 18, because having a slightly lower quality is totally fine for me.
